SC-SJ1000M
The SDR Counter-UAV Digital Source Module is built on Software Defined Radio (SDR) architecture. It comprises two key components: a digital source and a power amplifier unit. The digital source operates within a wide frequency range of 20MHz to 6000MHz and offers flexible configuration within a 200MHz bandwidth, ensuring precise frequency characteristics. Designed for superior performance, it automatically generates digital modulation interference codes tailored to various drone types and supports common protocols such as ELRS, Crossfire, Flysky, Ocusync, Lightbridge, and Skyloas. Its integrated modular design is compact and small, featuring flexible interfaces that allow for seamless integration into diverse systems.
Features
Effective for Various FPV Drones
Generating interference source signals with different digital modulation methods, supporting common protocols such as ELRS, Crossfire, Flysky, Ocusync, Lightbridge, and Skyloas etc.
Low Output Power
Target interference code generation, achieving longer effective interference distance with lower output power
Easy to Integrate
Modular design, easy to integrate, enable devices to quickly support FPV countermeasures
Investment Protection
Based on SDR architecture, algorithm upgrades can be done through software, without hardware replacement

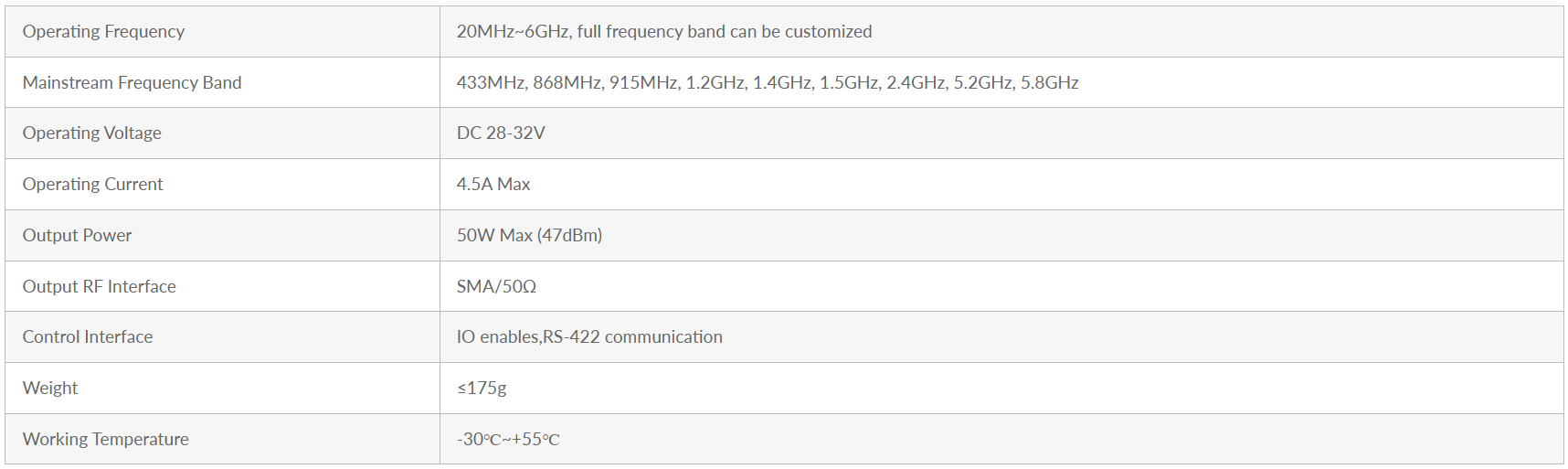

Product parameters
